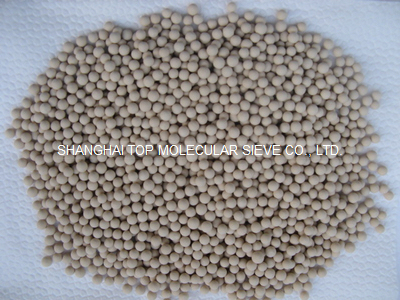

13X-APG adsorbent is the sodium form of the Type X molecular sieve and an alkali metal aluminosilicate.
13X-APG adsorbent will adsorb molecules with critical diameters up to 10 angstroms.
APPLICATIONS:
Air plant feed purifcation ( simultaneous removal of H2O and CO2 )
Drying and desulphurization of natural gas, Iiquefied petroleum gas, liquefied hydrocarbon
Drying of general gas.
Pressure Swing Adsorption(PSA) oxygen-making
CHEMICAL FORMULA: Na86·[(AlO2) 86 (SiO2) 106 ] XH2O
TYPICAL PROPERTIES:
13X-APG :
Properties |
Unit |
Bead |
Pellet |
Trisiv |
||
Particle Sizes |
|
8X12 Mesh |
4X8 Mesh |
1/16” |
1/8” |
1/8” |
Particle Diameter |
mm |
1.7—2.4 |
3.6—4.8 |
1.5—1.8 |
3.0—3.4 |
3.0—3.4 |
Bulk Density |
kg / m³ |
≥640 |
≥640 |
≥610 |
≥610 |
≥580 |
Crush Strength |
N |
≥30 |
≥75 |
≥30 |
≥65 |
≥65 |
CO2 Capacity |
wt, % |
≥18 |
≥18 |
≥17.5 |
≥17.5 |
≥17.5 |
Equilibrium H2O Capacity |
wt, % |
≥27 |
≥27 |
≥26.5 |
≥26.5 |
≥26.5 |
Moisture Content |
wt, % |
≤1.5 |
≤1.5 |
≤1.5 |
≤1.5 |
≤1.5 |
Molecules adsorbed Molecules with an effective diameter of <10 angstroms
Molecules excluded Molecules with an effective diameter of >10 angstroms.
Measured at 17.5 mm Hg and 25 °C. The normal equilibrium water capacity in water saturated gas.
13X-PG
Properties |
Unit |
Bead |
Pellet |
||
Particle Sizes |
|
8X12 Mesh |
4X8 Mesh |
1/16” |
1/8” |
Particle Diameter |
mm |
1.7-2.4 |
3.6-4.8 |
1.5—1.8 |
3.0—3.4 |
Bulk Density |
kg / m³ |
≥640 |
≥640 |
≥610 |
≥610 |
Crush Strength |
N |
≥30 |
≥75 |
≥30 |
≥75 |
Equilibrium H2O Capacity |
wt, % |
≥24.0 |
≥24.0 |
≥24.0 |
≥24.0 |
Moisture Content |
wt, % |
≤1.5 |
≤1.5 |
≤1.5 |
≤1.5 |
Measured at 17.5 mm Hg and 25 °C. The normal equilibrium water capacity in water saturated gas.
13X-HP
Properties |
Unit |
Bead |
Particle Sizes |
|
8X12 Mesh |
Particle Diameter |
mm |
1.7-2.4 |
Bulk Density |
kg / m³ |
≥640 |
Crush Strength |
N |
≥26 |
CO2 Capacity |
mg/g |
≥19.0 |
Equilibrium H2O Capacity |
wt, % |
≥26.0 |
Moisture Content |
wt, % |
≤1.5 |
Measured at 17.5 mm Hg and 25 °C. The normal equilibrium water capacity in water saturated gas.
PACKING:
Packing |
Cubage |
Net Weight (KG) |
|
Beads |
Pellets |
||
55-gallon steel drums |
0.208M³ |
140 |
125 |
22-gallon steel drums |
0.083M³ |
50 |
50 |
Carton with aluminum or PE bag |
0.041M³ |
25 |
25 |
Quick load bag |
0.742M³ |
500 |
500 |
